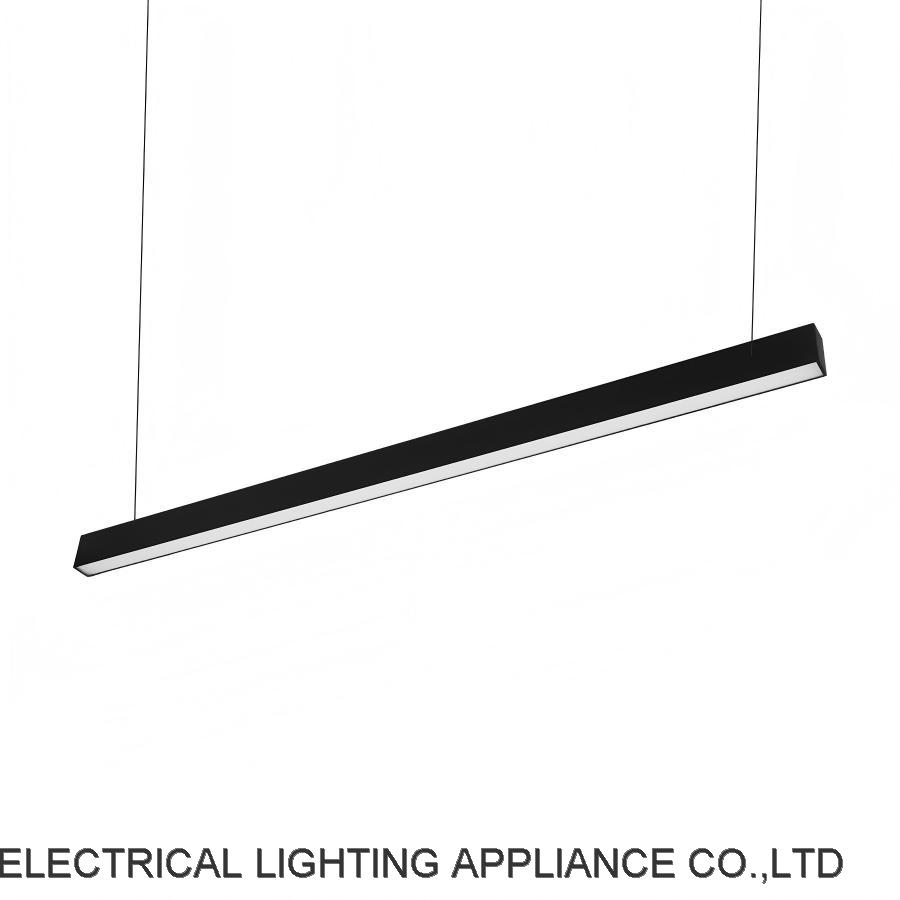

MUSES high quality product adjustable led linear light Application In door public site

MOQ :1 piece

Lead Time :15 Days

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C,T/T,Western Union, Money Gram, Credit Card, Paypal

Product details

Supply Ability

  • Warranty(Year):5 Year

Product Specifications

  • Brand name:ZJESL
  • Color Temperature(CCT)::3000-6500K
  • Color Rendering Index(Ra)::80
  • Application:Indoor/Living room/Office, In door public site
  • Lifespan (hours):50000H
  • Size:L1200*W63*H78mm
  • Installation:Suspended/Surface Mounted
  • Design Style:Modern
  • Input Voltage(V):220-240V
  • Lamp Body Material:Aluminum
  • IP Rating:IP20
  • Housing Color:White/black/silver
  • Certification:CE LVD/EMC/CB

Product Description

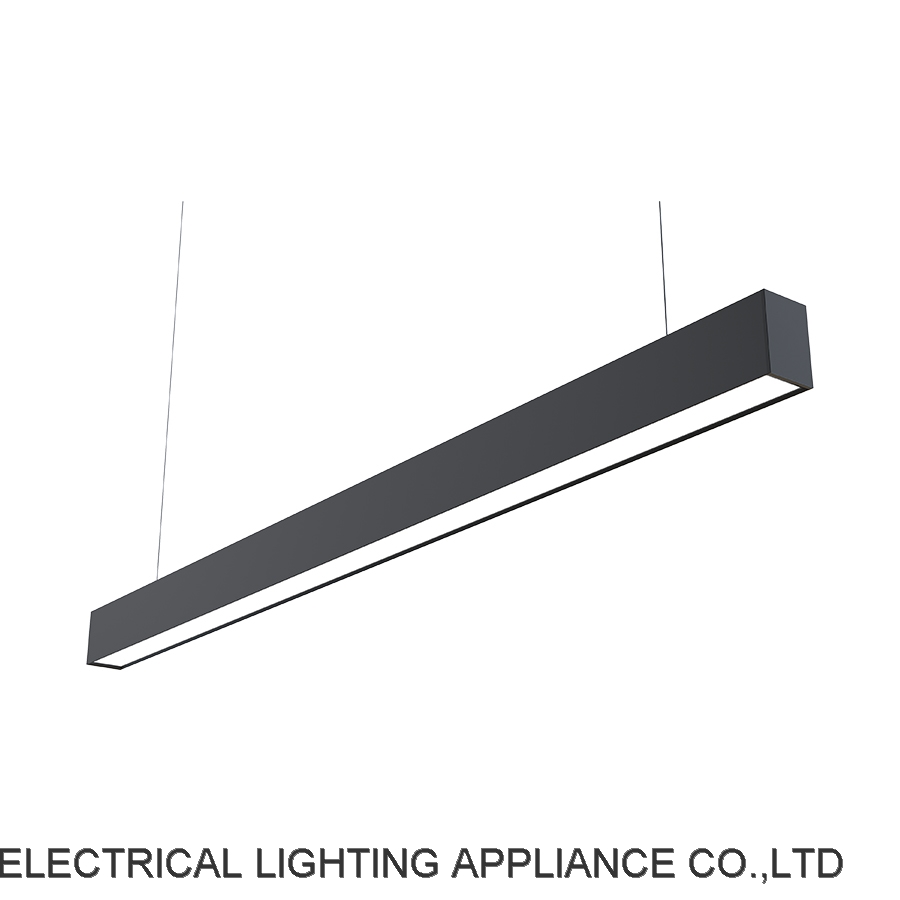

  Muses series suspend mounted linear LED luminaire,housing made of high pressure extruded aluminum construction,die-cast aluminum end caps with no visible screws,Electrostatic thermo-painting finish on housing and Flame-retardant PC grille anti-glare cover,UV and corrosion resistance,with beautiful appearance,the scientific proportion and reasonable dimensions,flexible installing methods,light body,excellent heat dissipation.Getting better with the"Lumbency curve"that brought by unique soft switch technology.Advanced thermal management technology to ensure consistency of LED life span,color temperature and maximize output lumens.


Parametater

Power

Lumen/W

DF

Beam Angle

Size(MM)

Certification No.

Certification No.

24W

90

>0.9

White/Black/Sliver

L600*W50*H70

L600*W63*H78

LED linear 24W

ESM-5070/6378-60-24W

30W

90

>0.9

White/Black/Sliver

L1200*W50*H70

L1200*W63*H78

LED linear 30W

ESM-5070/6378-120-30W

40W

90

>0.9

White/Black/Sliver

L1500*W50*H70

L1500*W63*H78

LED linear 40W

ESM-5070/6378-150-40W

50W

90

>0.9

White/Black/Sliver

L1800*W50*H70

L1800*W63*H78

LED linear 50W

ESM-5070/6378-180-50W

60W

90

>0.9

White/Black/Sliver

L2400*W50*H70

L2400*W63*H78

LED linear 60W

ESM-5070/6378-2400-60W

80W

90

>0.9

White/Black/Sliver

L3000*W50*H70

L3000*W63*H78

LED linear 80W

ESM-5070/6378-300-80W

WW:2700-3500K NW4000-4500K PW5000-5500K CW:6000-6500K

IP20,IK08,1-10V Dimmable,Dali,CCT changing,Ripple<5%,Flicker free,Input Voltage:100-240V AC,CRI>80

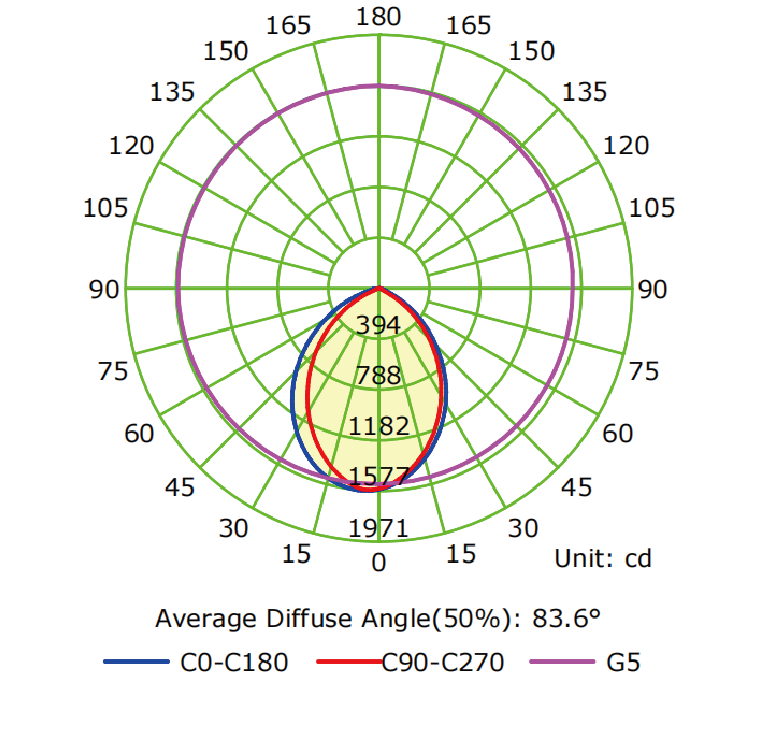

Light distribution curve

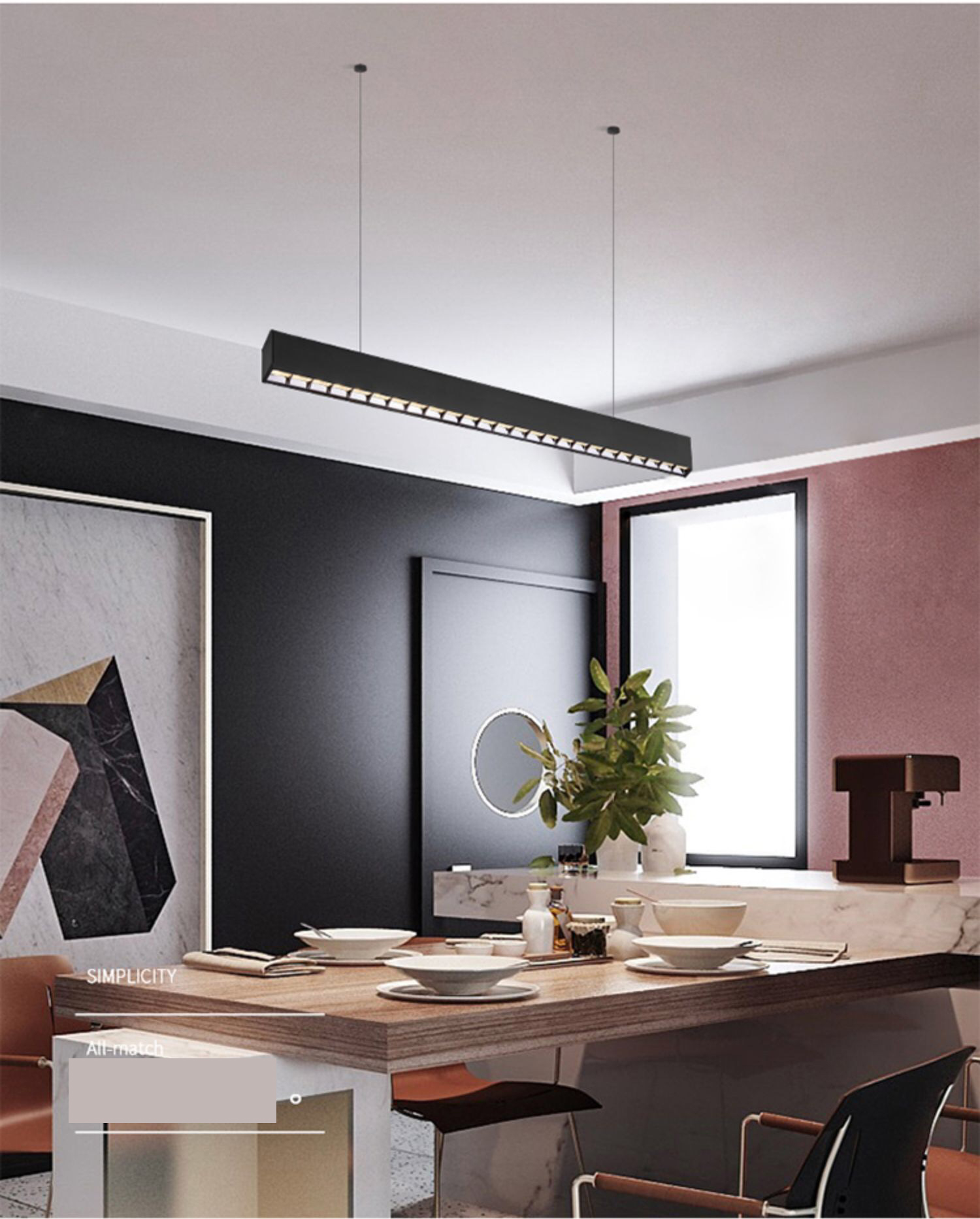

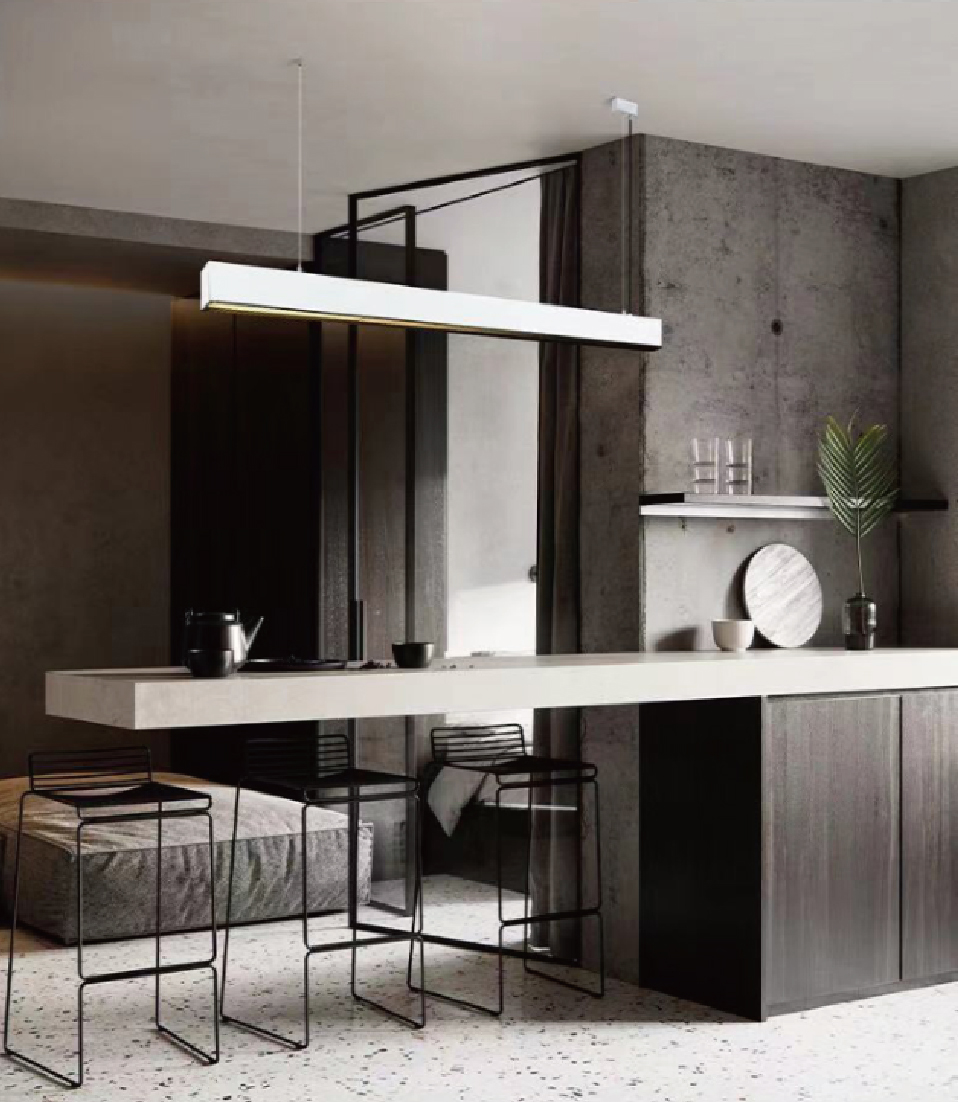

                         Living Room                                                     Restaurant

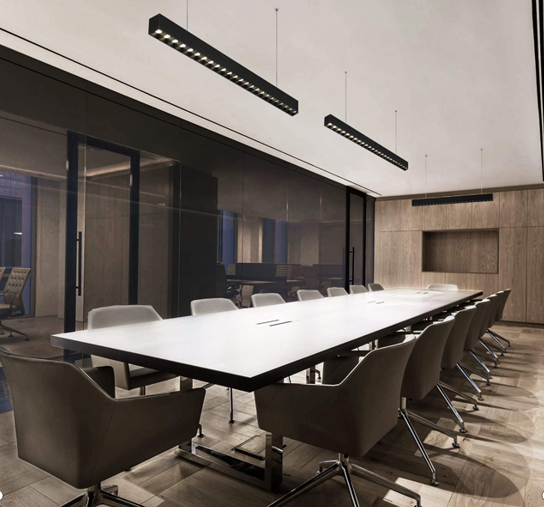

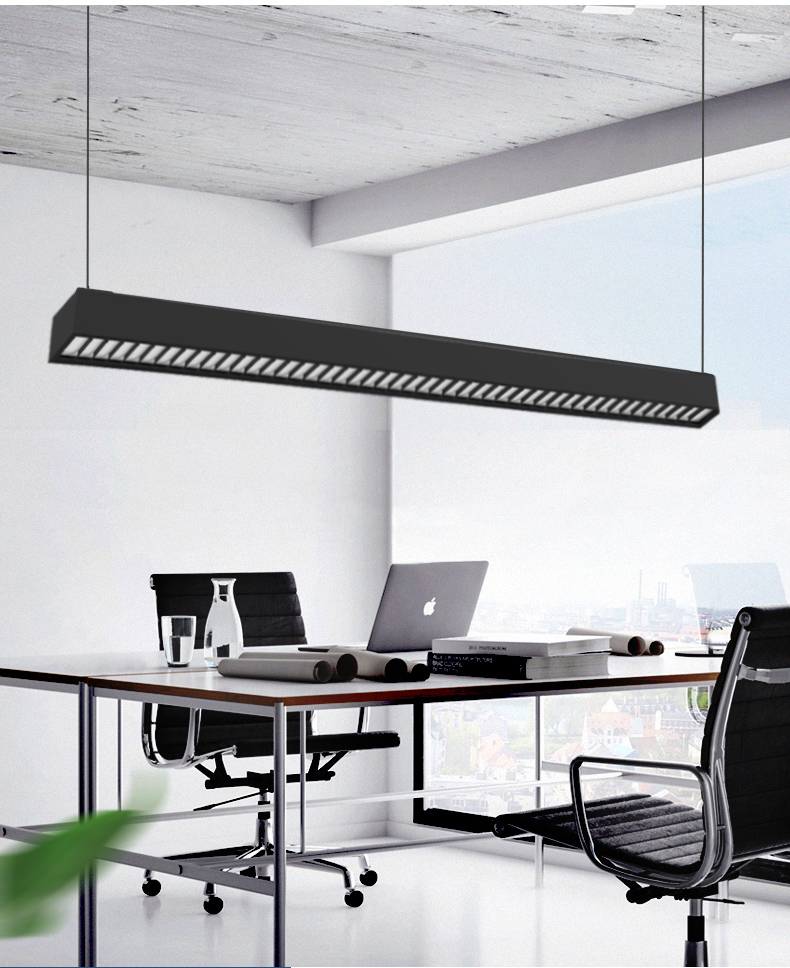

Meeting Room                                                         OffIce
